LHY AS6 Network Switch

Specifications

Technical Highlight

• High-End Ethernet Switch with OCXO Reclocking

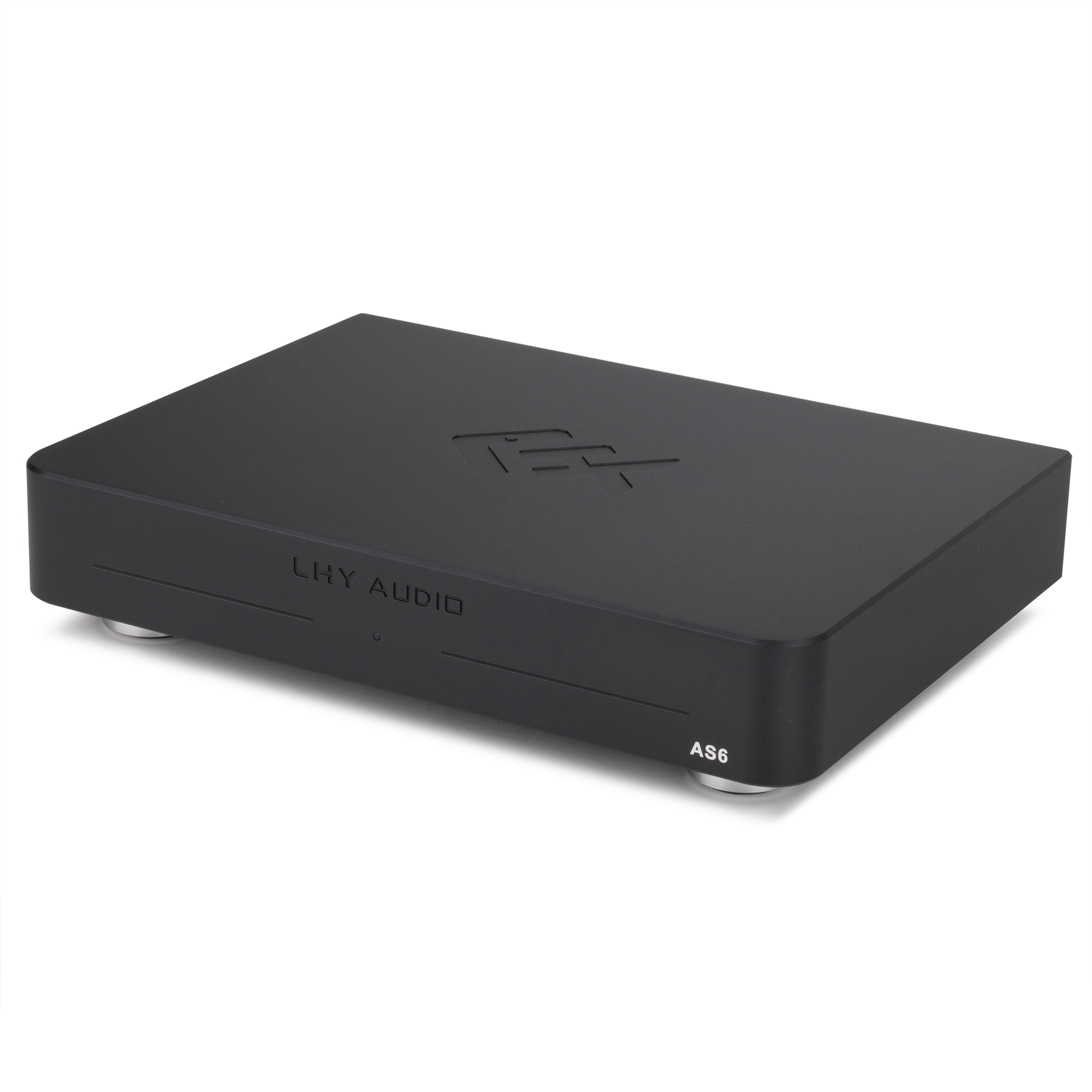

• CNC Aluminum Block Chassis [Silver/Black]
• AC Incoming: High Quality IEC with Fuse & Switch
• AC Noise Filter: UK RIFA RFI Suppression Caps & Noise Filter

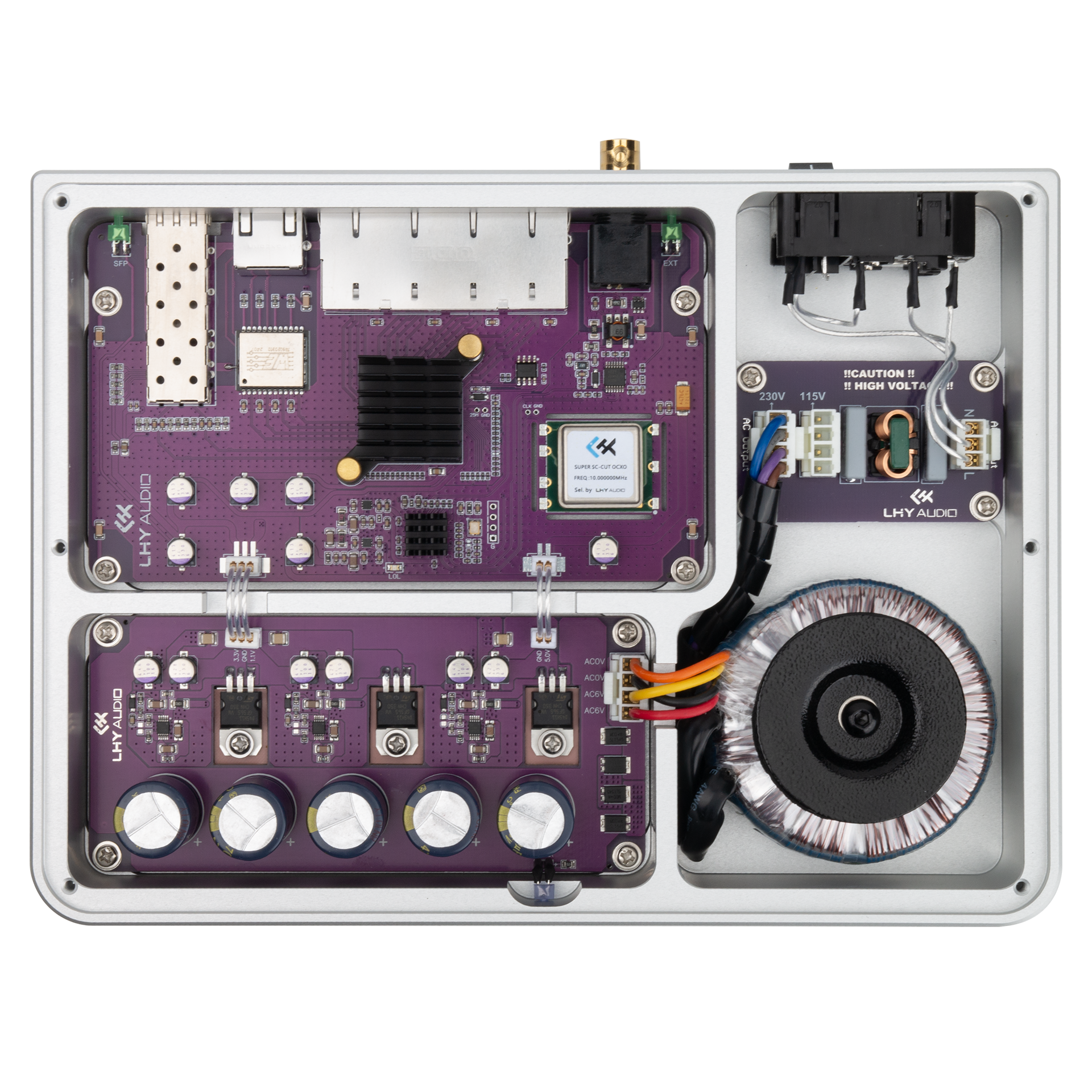

• AC Transformer: High Quality Noratel Toroidal Transformer
• High Speed Rectifier
• High Endurance Reservoir Caps
• Phillips 1% Precision Resistors
• Multistage DC/DC uV-class linear power supply with noise close to 0 (lab measurable noise in the range of uV)
• Integrated Aluminium Heat-sink Chassis

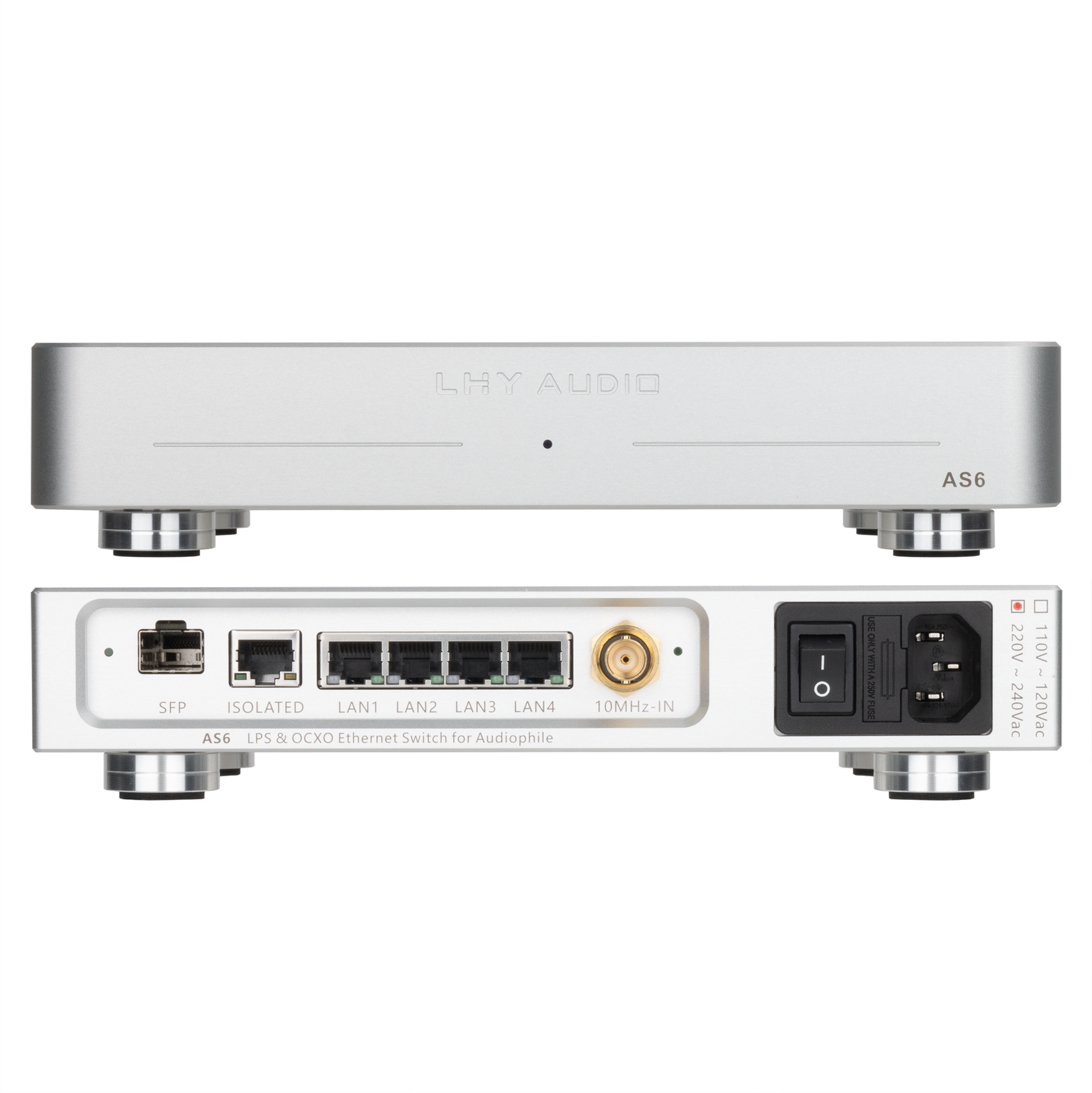

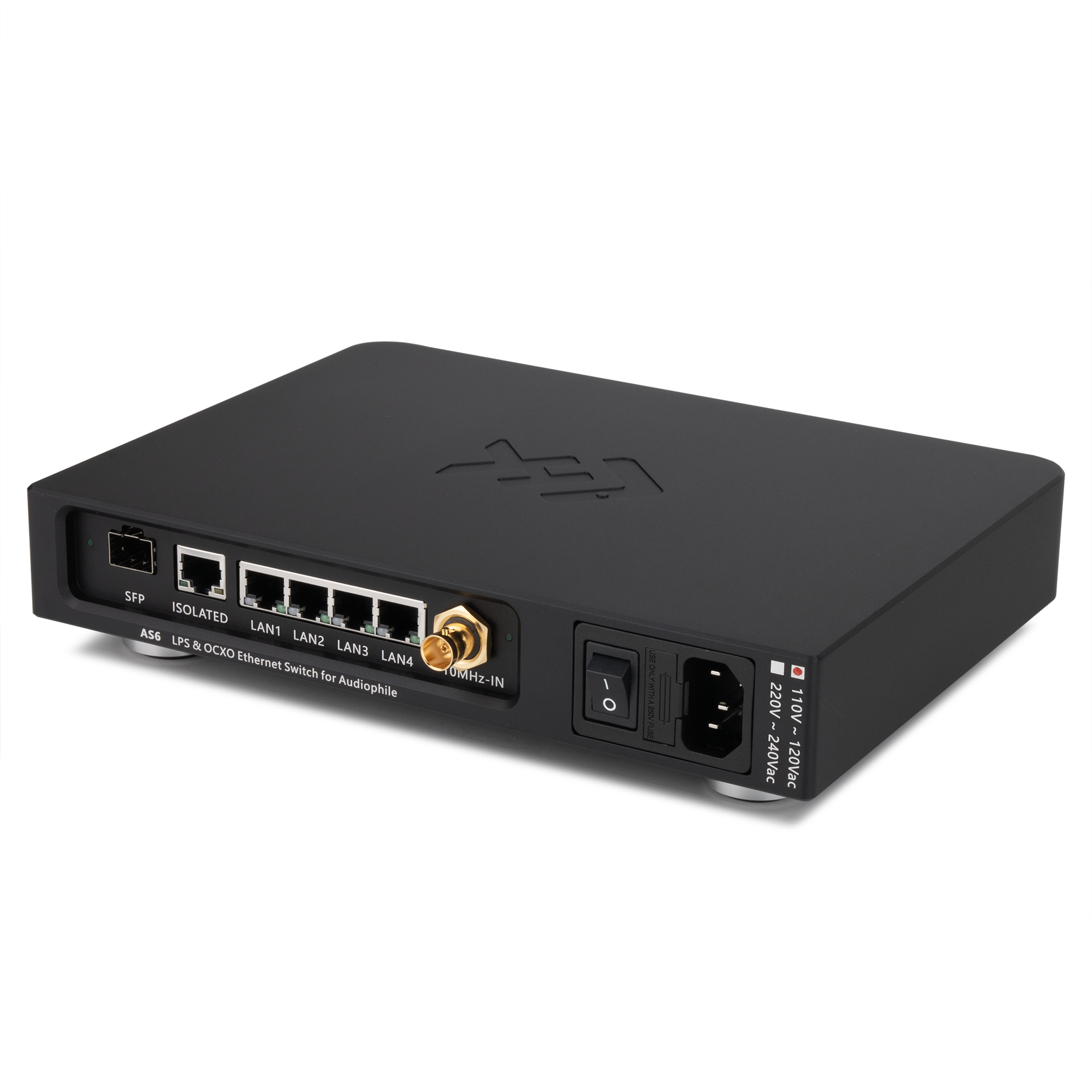

Connectivity:

• 4 x Gigabit Ports RJ-45
• 1 x Isolated Gigabit Port RJ-45
• 1 x SFP Port
• 10MHz Master Clock In



OCXO

• Phase Noise -100dBc/Hz (Typical)
• Reclock Ethernet Data Stream by High-quality SC-CUT Oven Controlled Crystal Oscillator with ultra-low noise PLL circuitry
• Noticeable improvement in Clocking precision and lower jitters
• Master Clock 10MHz Input via BNC connectors



Master Clock In

• Input: Sinewave/Squarewave, 50Ω



What’s in the package:

• LHY AS-6 Network Switch
• Power cord



Dimension: 240W x 50H x 175D (mm)

Weight: 2.05kg



SFP/Fiber Optic Recommendation

• We suggest pairing LHY Media Converter / Network Switch with the Finisar 1318 SFP module (FTLF1318P3BTL) and the single-mode OS2 fiber optic cable (inverted/crossed) from FS.com.
