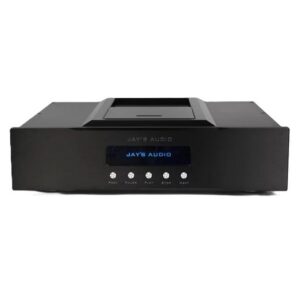

JAY'S AUDIO CDT2-MK2

CDT2-MK2 INFO

JAY’S AUDIO, a high-end CD Transport, and CD Player manufacturer, believes in CD is the best way to reproduce music. The exceptional sound quality of JAY’S AUDIO CDT/P wins many audiophile hearts especially the price and performance ratio is simply unbeatable.

The CDT2-MK2 variant aims to capture music lovers who already own a decent DAC where the CD Transport will be feeding the 16bits, 44.1kHz signal through HDMI i2s / Coax / AES EBU to.

Design Highlight:
– CDM4 Mechanism

– Schurter IEC Inlet With Noise Filter

– UK Noratel Encapsulated Transformers
– Multistages Super Regulator
– Neutrik XLR

– FEMTO Clock

– i2s LVDS Output (PSAudio standard)

Digital Output: COAX (RCA/BNC) 2v @ 75ohm ; XLR 5V @110ohm, HDMI i2s LVDS

AC Power: 110V/230V

Dimension: 430mm x 380mm x 120mm
Weight: 15KG

Warranty: 12 months

JAY'S AUDIO CDP-2

CDP-2 INFO

JAY’S AUDIO, a high-end CD Transport, and CD Player manufacturer, believes in CD is the best way to reproduce music. The exceptional sound quality of JAY’S AUDIO CDT/P wins many audiophile hearts especially the price and performance ratio is simply unbeatable.

The CDP-2 equipped with Danish’ Soekris dam1021 R2R DAC, converts the native i2s CDM4 digital signal to buffered/unbuffered analog signal via the signed-magnitude discrete R2R DAC, with the customed NOS filter, one can argue the sound is natural, and full of emotion.

The CDP-2 can be used with the external DAC through the HDMI i2s / Coax / AES EBU digital output.

Design Highlight:
– CDM4 Mechanism

– Schurter IEC Inlet With Noise Filter

– UK Noratel Encapsulated Transformers
– Multistages Super Regulator
– Neutrik XLR

– FEMTO Clock

– i2s LVDS Output (PSAudio standard)

Digital Output: COAX (RCA/BNC) 2v @ 75ohm ; XLR 5V @110ohm, HDMI i2s LVDS

Analog Output:

S/N 20 Khz Bandwith127 dB unweightedFrequency Range +0.1dB -1.0dB20hz – 20KhzOutput unbufferedSingle ended 1.4V RMS, Zout 625ROutput bufferedBalanced 4.0V RMS, Zout 20R

AC Power: 110V/230V

Dimension: 450mm x 380mm x 120mm
Weight: 15KG

Warranty: 12 months
