Denafrips Venus 15th DAC

Product Info

Technical Highlights

• Proprietary R2R + DSD Architecture
• True balanced 26BIT R2R + 6BIT DSD (32 steps FIR Filters)
• Low Thermal Effect, High Precision Hand-Matched 0.005% Resistors
• Encapsulated Premium Ultra Low Noise Power Supply
• TCXO – Temperature-Compensated Crystal Oscillator
• Adaptive FIFO Buffer Reclocking
• New Improved Digital Signal Processing FPGA Code
• DSD1024, PCM1536 Supports On USB & I²S Input
• Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU
• Licensed Thesycon USB Driver For Windows Platform
• Driverless On Mac & Linux
• Dual AES/EBU Input Supports
• Sharp/Slow Filters Option
• I²S Pinout Configuration
• I²S DSD Channel Swap Configuration

DSD

• DSD64 (DoP) on Coax/AES/Opt Input
• DSD1024* On USB & I²S Input Only

PCM

• 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input
• 1536kHz* On USB & I²S Input

NOTE*

• USB Firmware V3.4.1 – PCM1536 / DSD1024 supports disabled for compatibility with macOS

Sampling Mode: Non-Oversampling NOS / Oversampling OS

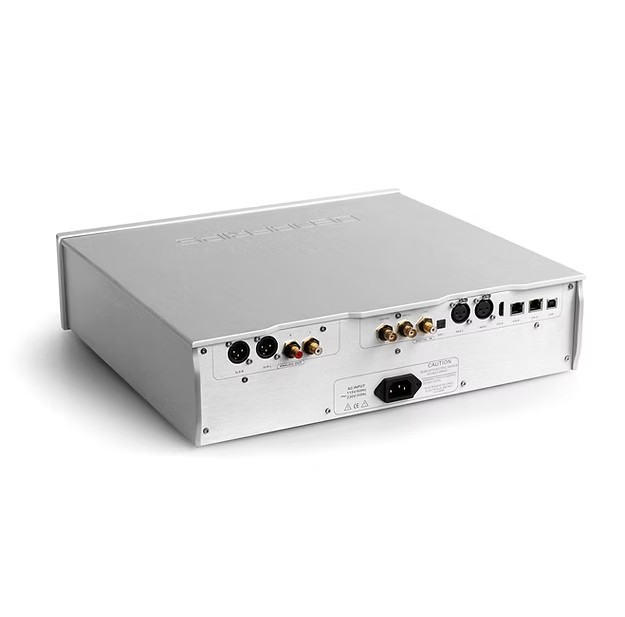

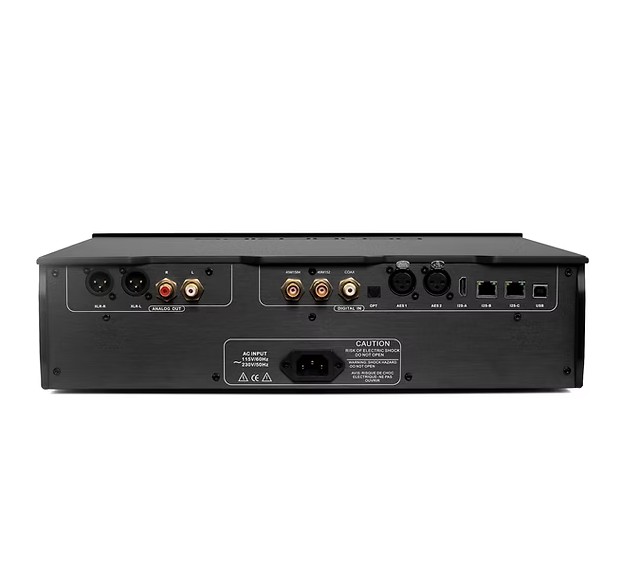

Digital Input

• Coax 1 via RCA
• Coax 2 via BNC 75 Ω
• TOSLink x 1
• AES/EBU x 2
• USB2.0 Type B
• I²S via HDMI LVDS

Analog Output

• RCA at 2.0Vrms, 625 Ω
• XLR at 4.0Vrms, 1250 Ω

Frequency Response: 20-70KHz -3dB

THD+N: 0.0020%

S/N Ratio: 120dB

Dynamic Range: >121dB

Stereo Crosstalk: -110dB

AC Power Requirement: 100-240VAC, 50/60Hz (Worldwide Voltage)

Power Consumption: ≤20W

Dimension: 320 x 330 x 110 mm (Including feet)

Package Dim: 470 x 440 x 175 mm

Package Content: DAC only. No power cord & remote control.

Weight: 8.5 Kg

Color: Silver / Black

Warranty: 36 Months
